CNC Drilling Machine w/ Centroid Controller (Union Gap)

CNC Drilling Machine w/ Centroid Controller 1

CNC Drilling Machine w/ Centroid Controller 1 thumbnail

condition: excellent

make / manufacturer: Centroid CNC Services Northwest

model name / number: Custom

QR Code Link to This Post

> Machine was designed to drill holes in a rack of (12) 2" x 12ft long pipes, but can perform many other tasks and is 3 axis capable.
> Designed and installed by CNC Services Northwest.
> Currently setup as 2 axis with 12" of travel in the Z axis, and 144" of travel on the X axis.
> It has (2) sets of 12 spindles (total of 24) with 25/65 collets.

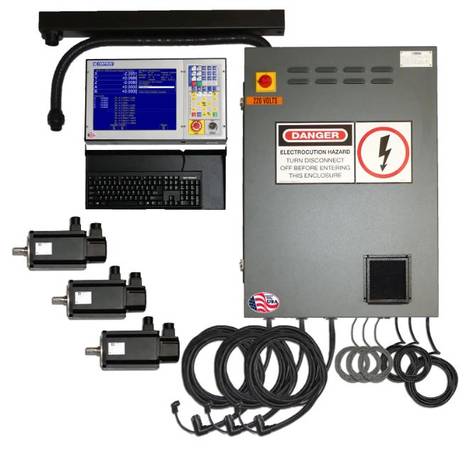

> It is setup with a Centroid OAK CNC Touchscreen controller and 3 servos.
> Yaskawa electrical components.
> Powered by (2) Dykman/Toshiba 10hp motors with cog belt drive.
> Ball screw driven heads, helical drive rack.
> All parts are high quality. Nook bearing and ball screws.
> Precision ground table 38" x 180"
> Automated coolant flood system with a 200+ gallon reservoir, adjustable level float, and automatic drain system.
> All documents to support components.
> Video of machine in operation on YouTube: https://youtu.be/kuNrmwHwX2c

*Make an Offer*
